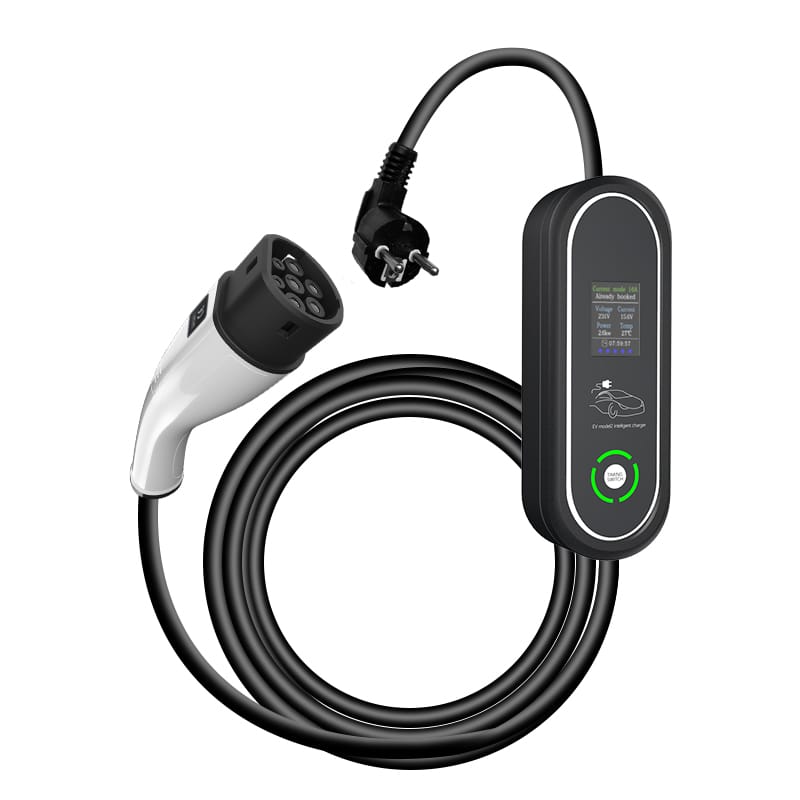

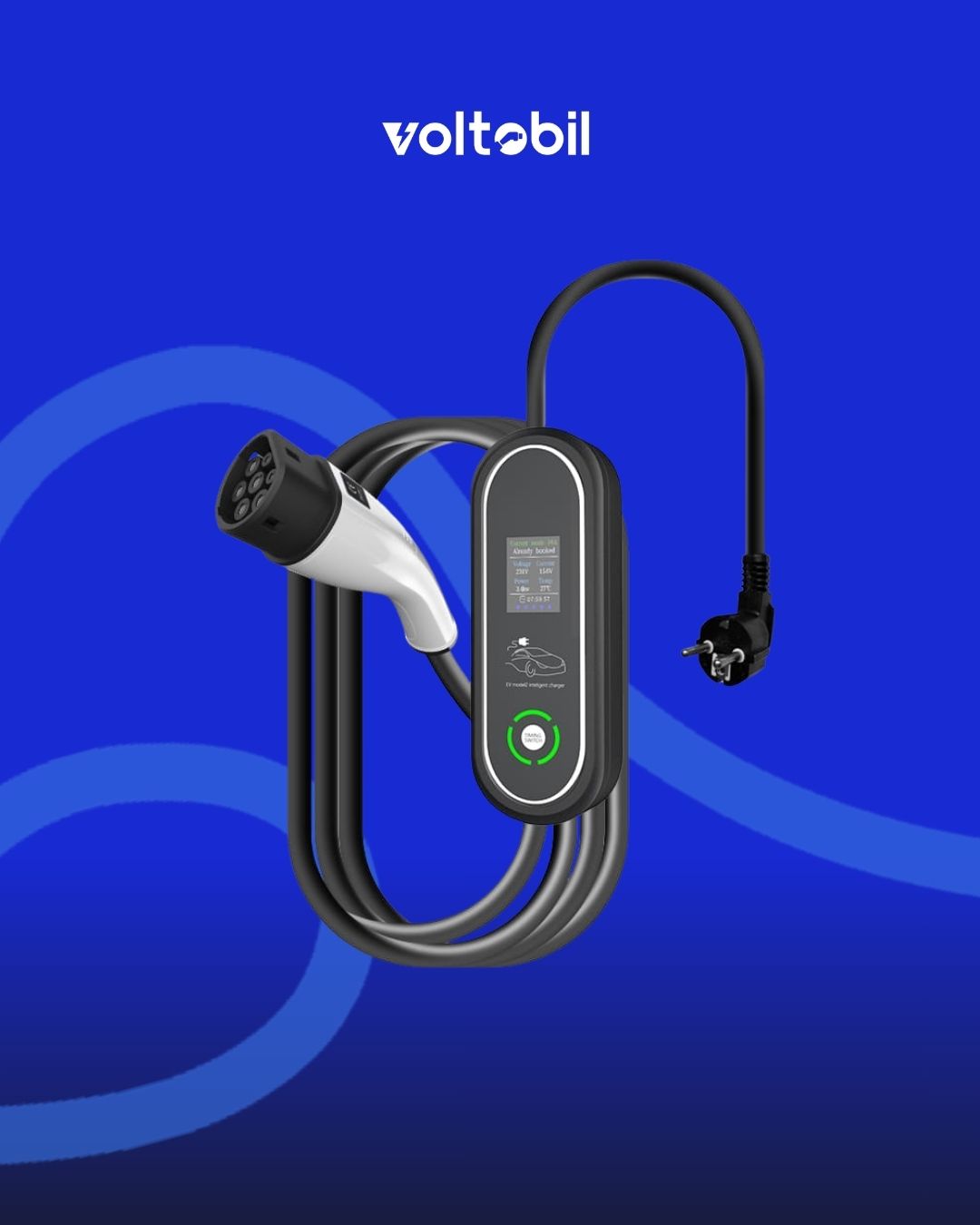

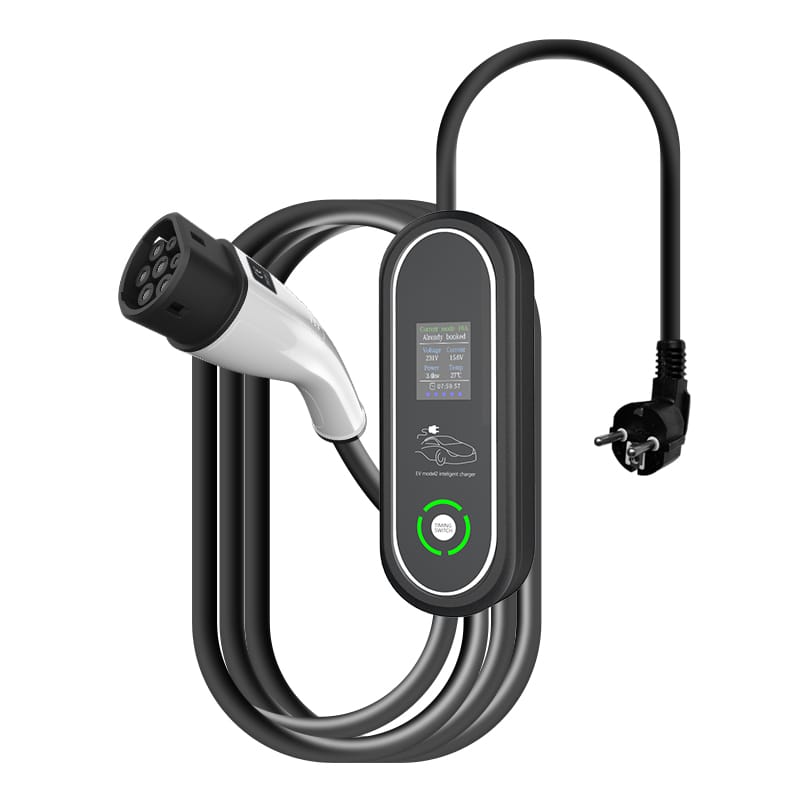

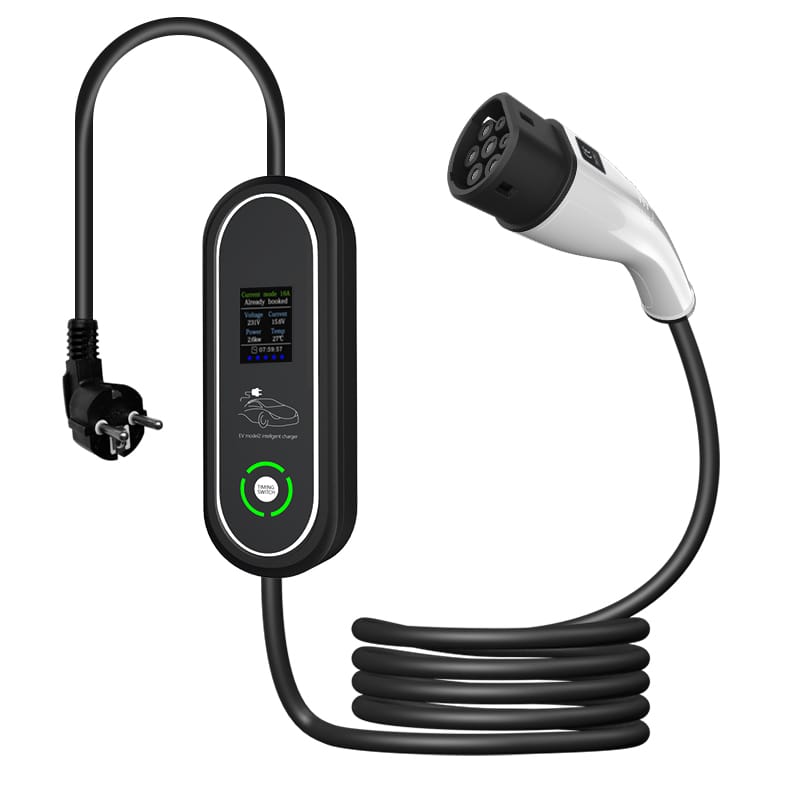

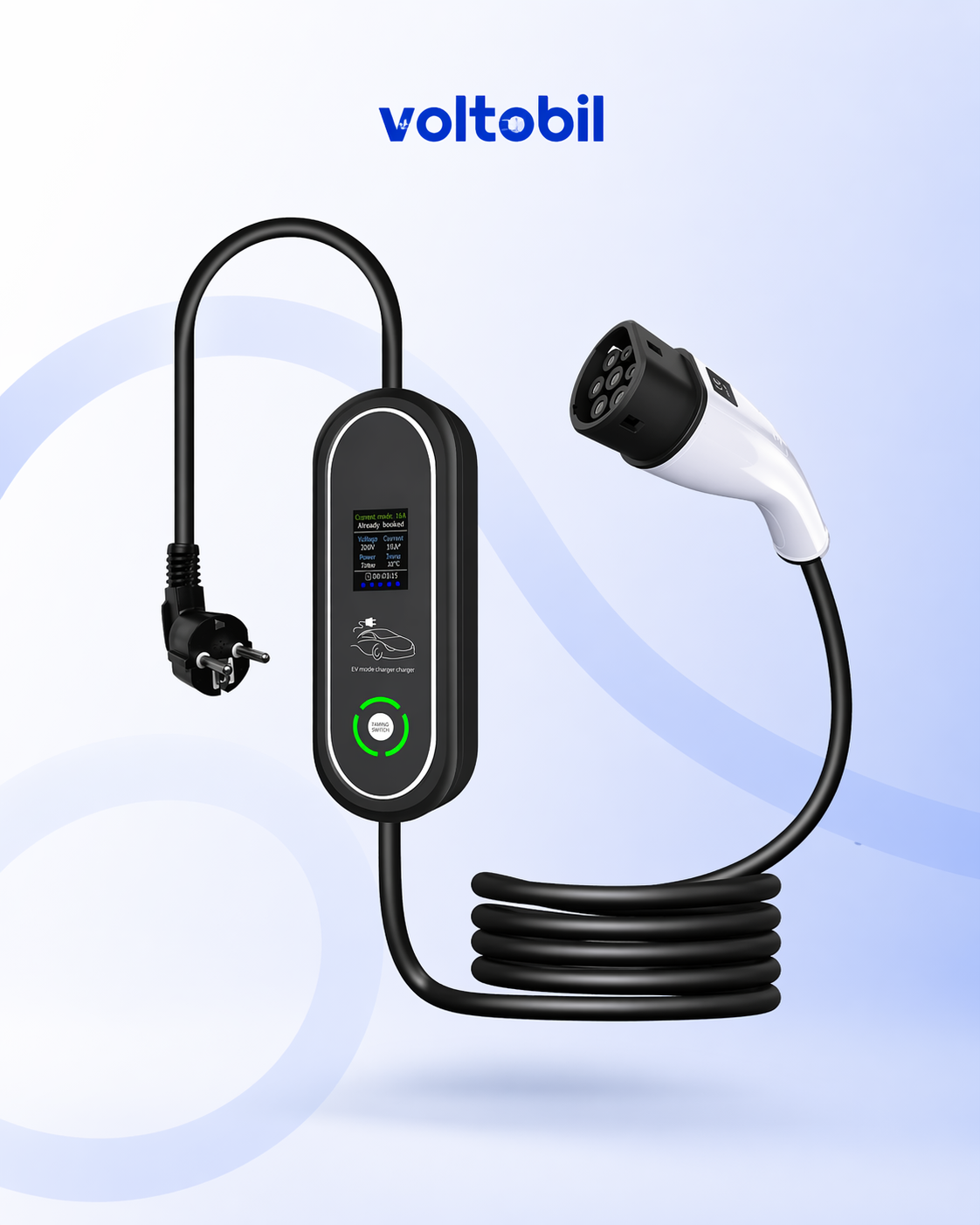

Type 2 Portable Charger – 3.5 kW

The Type 2 Portable Charger 3.5 kW is designed for safe and practical charging of electric and plug-in hybrid vehicles from a standard household socket. Its Type 2 vehicle connector makes it suitable for compatible electric vehicles.

The charging current can be set to 8 A, 10 A, 13 A or 16 A, so the charger can be matched to the capacity of the socket and the electrical installation. The timed charging function lets charging start after a selected delay.

Voltage, current, power, device temperature, charging time and operating status can be monitored in real time on the LCD display. Cable lengths of 5, 7, 10 or 15 metres give you room to move between the vehicle and the socket.

With IP55 protection and multiple electrical safety functions, it is suitable for everyday use at home, in the garage, in car parks and when travelling. Its portable design means it can easily be kept in the vehicle.

Key Features

• Type 2 vehicle connector
• Standard European Schuko plug
• Charging power up to 3.5 kW
• Single-phase operation
• Adjustable current: 8 A, 10 A, 13 A and 16 A
• Timed charging
• LCD display with real-time information
• 5 / 7 / 10 / 15 m cable options
• Plug-and-play operation
• IP55 water and dust protection
• Portable and compact design
• Can be used with the wall bracket

Technical Specifications

• Product type: Portable electric vehicle charger
• Vehicle connector: Type 2
• Mains connection: European Schuko plug
• Phase: Single-phase
• Maximum charging power: 3.5 kW
• Voltage: 250 V AC
• Frequency: 50 / 60 Hz
• Maximum current: 16 A
• Adjustable current: 8 A / 10 A / 13 A / 16 A
• Cable length: 5 / 7 / 10 / 15 m (depending on the option selected)
• 2-inch LCD screen
• Displayed information: Voltage, current, power, temperature, time and charging status
• Timer options: 0 / 2 / 4 / 6 / 8 hour delayed start
• Protection rating: IP55 when connected
• Operating temperature: -25°C to +50°C
• Operation: Plug-and-play
• Mounting: Portable or with the wall bracket

Safety Features

• Residual current protection
• Overcurrent protection
• Overvoltage protection
• Undervoltage protection
• Overtemperature protection
• Earthing (ground) check
• Overload protection
• Flame retardant housing
• IP55 water and dust protection

Package Contents

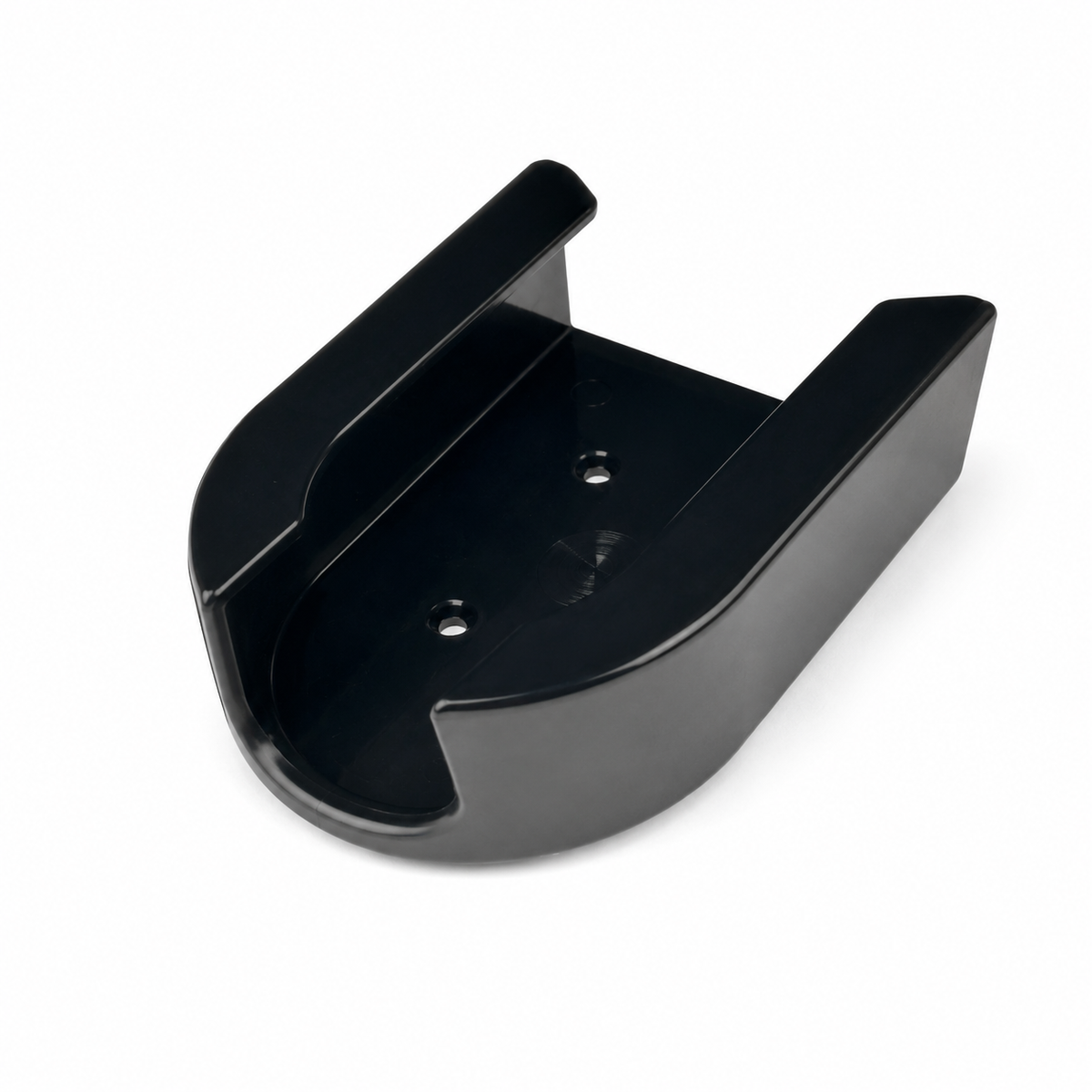

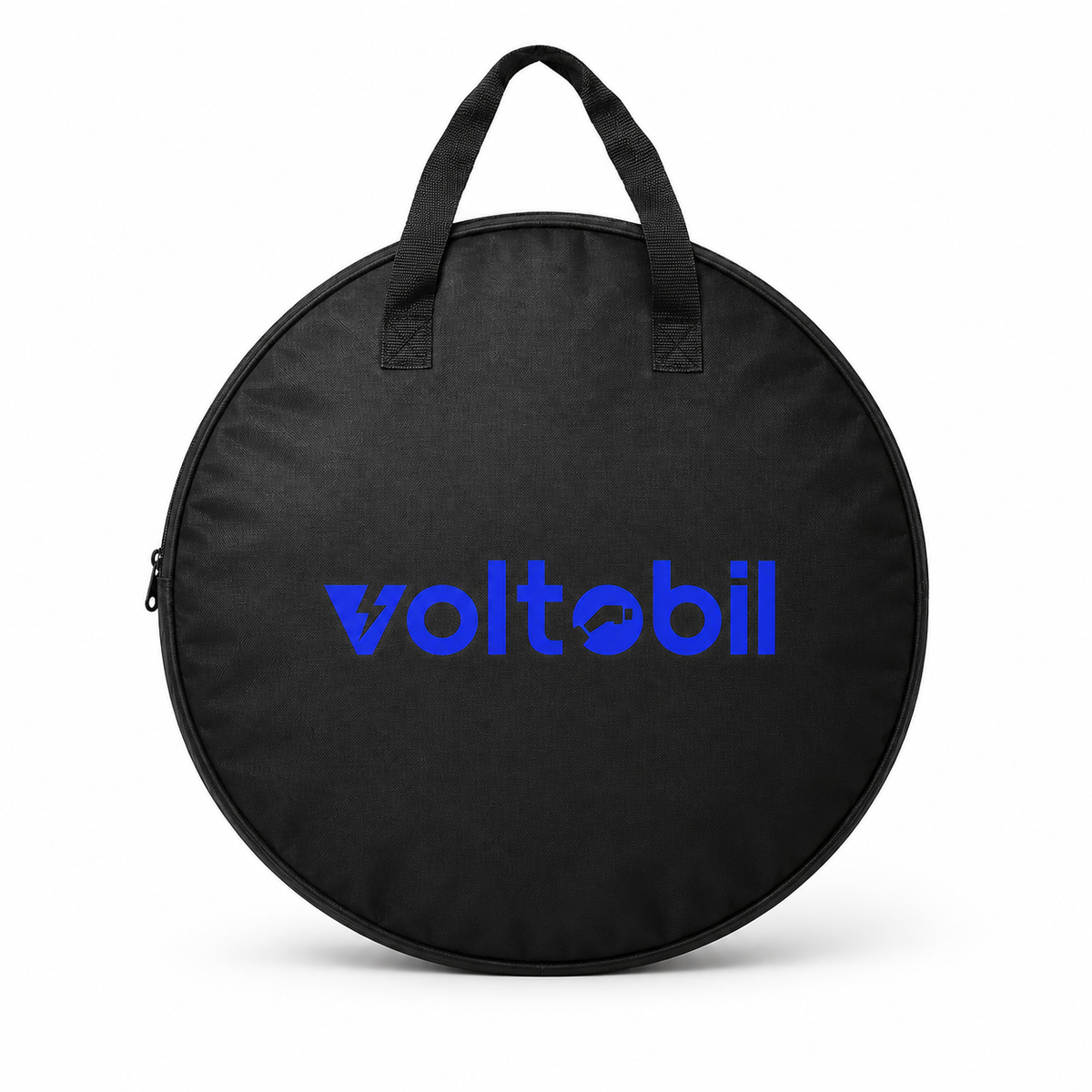

Type 2 portable charger, carry bag and wall bracket.

Compatible Brands and Models

Vehicles with a Type 2 charging inlet.

Important note: Before using the charger, have a qualified electrician check that the socket, circuit wiring, fuse and electrical installation can carry a continuous load of 16 A. Do not use extension cables, multi-socket adapters, unsuitable adapters or intermediate connectors.
