Type 2 – Type 2 Charging Cable – 22 kW
Type 2 – Type 2 Charging Cable – 22 kW

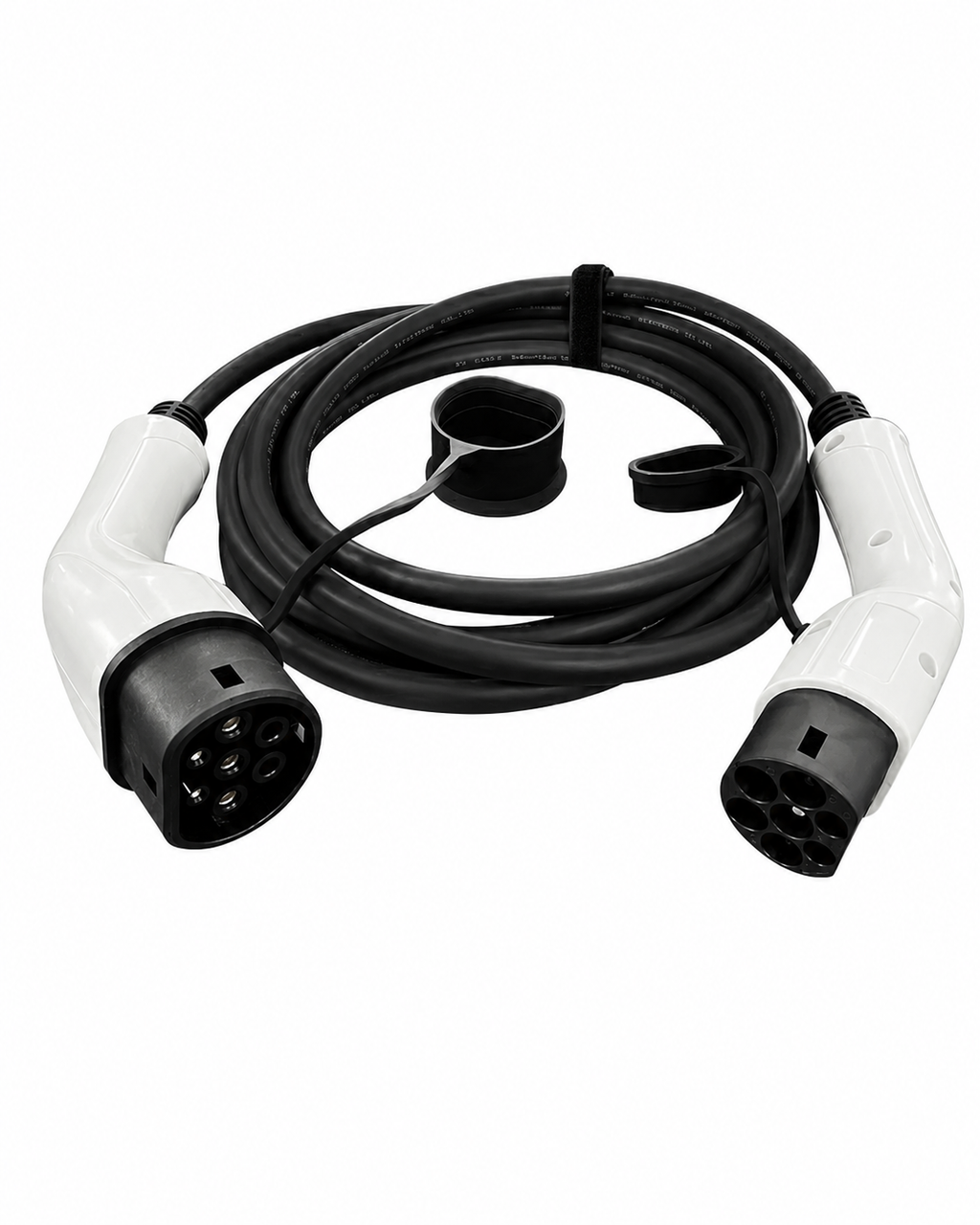

The Type 2 – Type 2 Charging Cable is designed to connect electric and plug-in hybrid vehicles with a Type 2 charging inlet to AC charging stations and wall-mounted charging units.
Supporting AC charging power of up to 22 kW, the cable can be used with three-phase charging infrastructure. With a Type 2 connector at each end, it provides a safe and practical connection between the vehicle and the charging station.
Available in 5 or 7 metre lengths, it is convenient to use at home, at work, in car parks and at public charging stations. Its durable and flexible cable makes it suitable for everyday use.
This product is not a standalone charger; it is a connection cable only. A charging station or wall-mounted charging unit with a Type 2 socket is required for charging.
Key Features
- Type 2 – Type 2 connection
- Supports AC charging up to 22 kW
- Compatible with three-phase charging infrastructure
- Supports current up to 32 A
- 5 or 7 m cable options
- Compatible with electric and plug-in hybrid vehicles
- For use with home wall units and public charging stations
- Durable and flexible cable
- Plug-and-play use
- Easy to carry and store
Technical Specifications
- Product type: Electric vehicle charging cable
- Vehicle connector: Type 2
- Charging station connector: Type 2
- Maximum charging power: Up to 22 kW
- Maximum current: Up to 32 A
- Phase: Three-phase
- Voltage: 440 V AC
- Frequency: 50 / 60 Hz
- Cable length: 5 or 7 m (depending on the option selected)
- Charging type: AC charging
- Use with: Charging stations and wall-mounted charging units with a Type 2 socket
- Operation: Plug-and-play
- Compatible vehicles: Electric and plug-in hybrid vehicles with a Type 2 connection
Package Contents

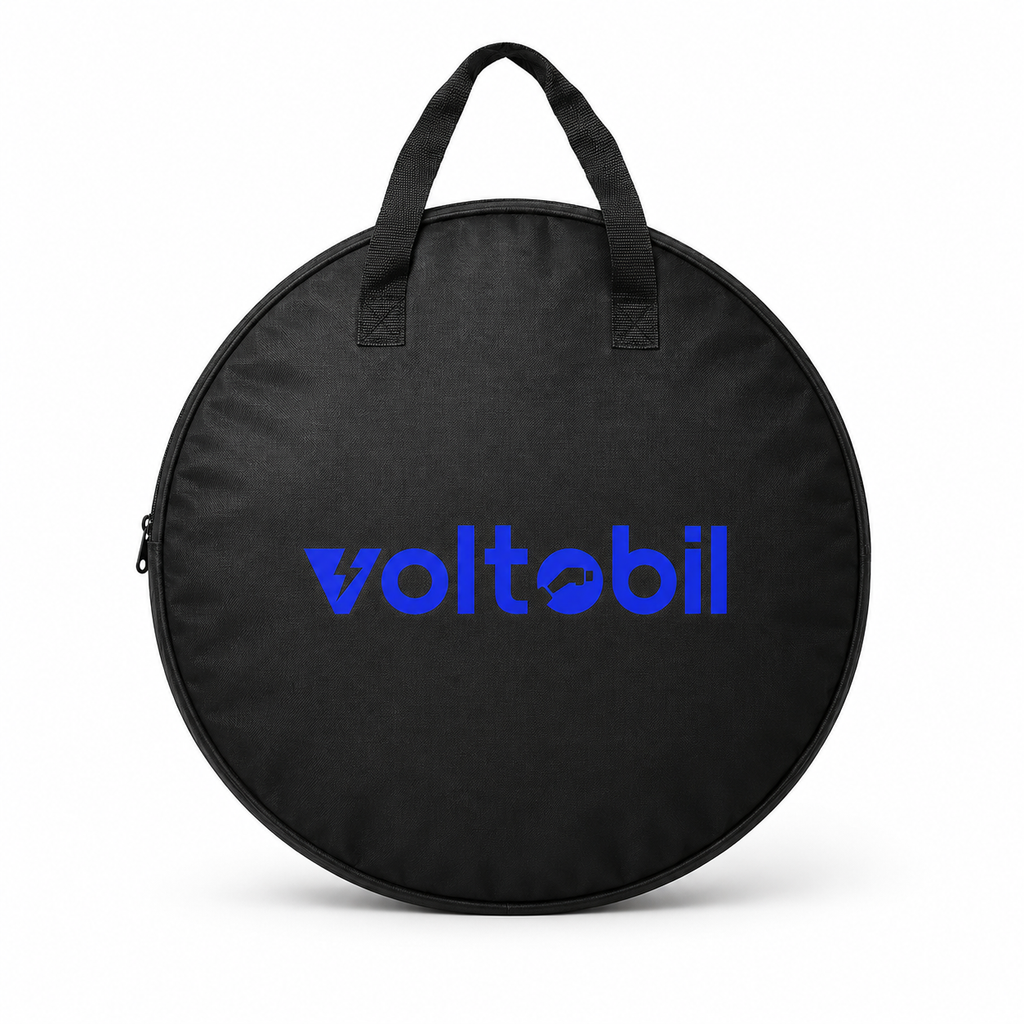

Type 2 – Type 2 Charging Cable, carrying bag, and wall mount bracket.
Compatible Brands and Models
Vehicles with a Type 2 inlet and charging points with a Type 2 socket.
Usage note: Actual charging power depends on the vehicle's AC charging capacity, the charging station's output power and the electrical infrastructure. If the vehicle or the station supports a lower power level, charging takes place at the lowest supported power.
